China 6 axis 1500m robot arm metal frame mig welding robot
Characteristics
-Robot arm:
- Die casting process, aluminum arm ,Lighter and more flexible
- Internal wires and terminals of the robot are made by the top world famous brands: DYEDEN, TAIYO, the same as ABB and Fanuc
- Top Chinese brand of the controller,motor and reducer.

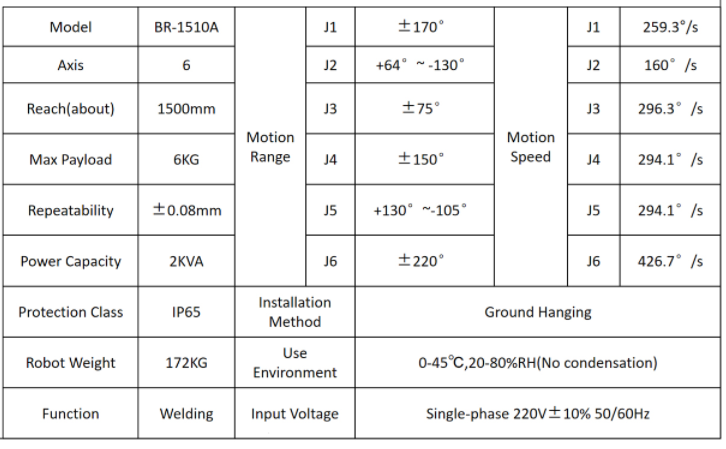

BR-1510 MIG welding robot parameters shows as below:
-JHY welding robot control system:
-Welding machine: :MEGMEET Artsen Pro500PR
-
The Artsen Pro series welding power source was developed based on the Artsen Plus series welder. It has met the demand for high-efficiency welding, especially for thick plates.
-
A power source of 500A 100% is available for the Artsen Pro series welder.
- With inverter technology of frequency as high as 100K HZ and high-speed sampling, Artsen Pro achieves precise control and is flexible with various welding characteristics.
- The Artsen Pro series brings LSA, a featured low-spatter welding process, as standard. Thunder Fusion is also available with Artsen Pro for the advanced short-arc pulse and double-pulse MIG/MAG.
- The Artsen Pro series welder meets high-quality welding of carbon steel, stainless steel, and aluminum alloys.
- Equipped with Constant Fusion, which allows wire-feeding speed at pulse mode to change automatically according to the stick-out length and keeps the penetration stabilized.
- Equipped with a USB port for upgrading, ensuring access to the most advanced welding process developed by MEGMEET and the most suitable welding software to face different welding conditions.
-Welding torch:
- Water-cooled with highly sensitive anti – collision device, greatly extend the service life of the torch
-Welding positioner & robot walking rail
- 1 axis,2 axis and 3 axis welding positioners are optional to choose. Payload and worktable size can be customized according to requirement.
- Robot walking rail can be made by customized according to customer’s requirement. length 3/6/9/12M.payload:500/1000KG
-The machine maintenance is simple and easy to operate, and the designed service life is more than 10 years
