Chinese high efficient robot welding arm

Short Description:

This robot is belongs to Model PLUS in the 1500mm series

Model:BR-1510 PLUS

1.Reach: about 1500mm
2.Max payload:6KG
3.Repeatability:±0.08mm
4.Torch: Air cooling + anti-collision cell
5.Welding Machine :Megmeet Artsen CM 500
6.Applicable Materials：Carbon steel

Send email to us

Product Detail

Product Tags

Characteristics

-Robot arm:

Die casting process, aluminum arm ,Lighter and more flexible
Internal wires and terminals of the robot are made by the top world famous brands: DYEDEN, TAIYO, the same as ABB and Fanuc
Top Chinese brand of the controller,motor and reducer.

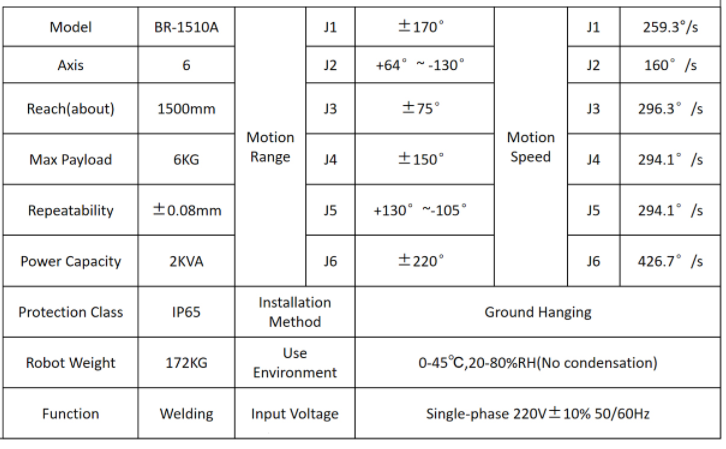

BR-1510 MIG welding robot parameters shows as below:

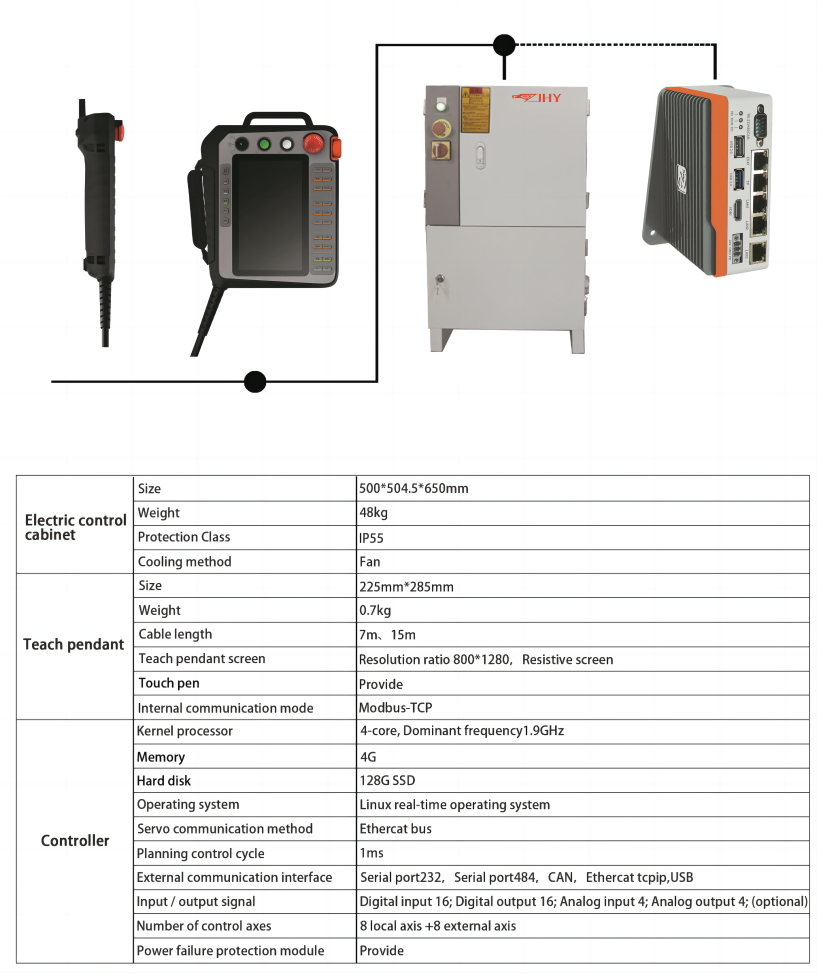

-JHY welding robot control system:

-Welding machine: :MEGMEET Artsen CM500

Digital Microprocessor Controlled Inverter Technology;
Synergic control of MIG/MAG CO2 welding processes;
Stable welding with stick-out lengths up to 30mm;
Achieving stabilized vertical-up welding at 150A with flux-cored wire and 50m inter-connection cable set.
Duty cycle 500A 100% @ 40°C
Proven record in heavy industries since 2014;
High tolerance against input voltage fluctuation (25%+/-);
Protection of PCB and wire-feeder from vibration, collision, moisture, and salty air.

-Welding torch:

Water-cooled with highly sensitive anti – collision device, greatly extend the service life of the torch

-Welding positioner & robot walking rail

1 axis,2 axis and 3 axis welding positioners are optional to choose. Payload and worktable size can be customized according to requirement.
Robot walking rail can be made by customized according to customer’s requirement. length 3/6/9/12M.payload:500/1000KG

-The machine maintenance is simple and easy to operate, and the designed service life is more than 10 years
Paying Attention To Every Detail Makes JHY Robot Better
