JHY 6 axis robot arm industrial automatic arc mig welding arm

Characteristics

-Robot arm:

• Die casting process, aluminum arm ,Lighter and more flexible
• Internal wires and terminals of the robot are made by the top world famous brands: DYEDEN, TAIYO, the same as ABB and Fanuc
• Top Chinese brand of the controller,motor and reducer.

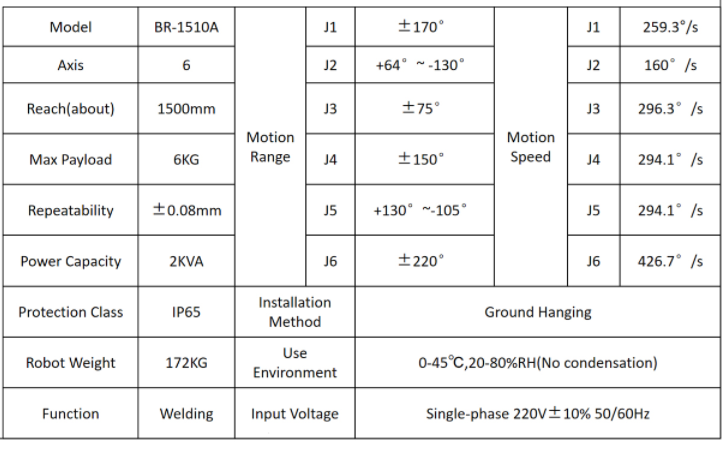

BR-1510 MIG welding robot parameters shows as below:

-JHY welding robot control system:

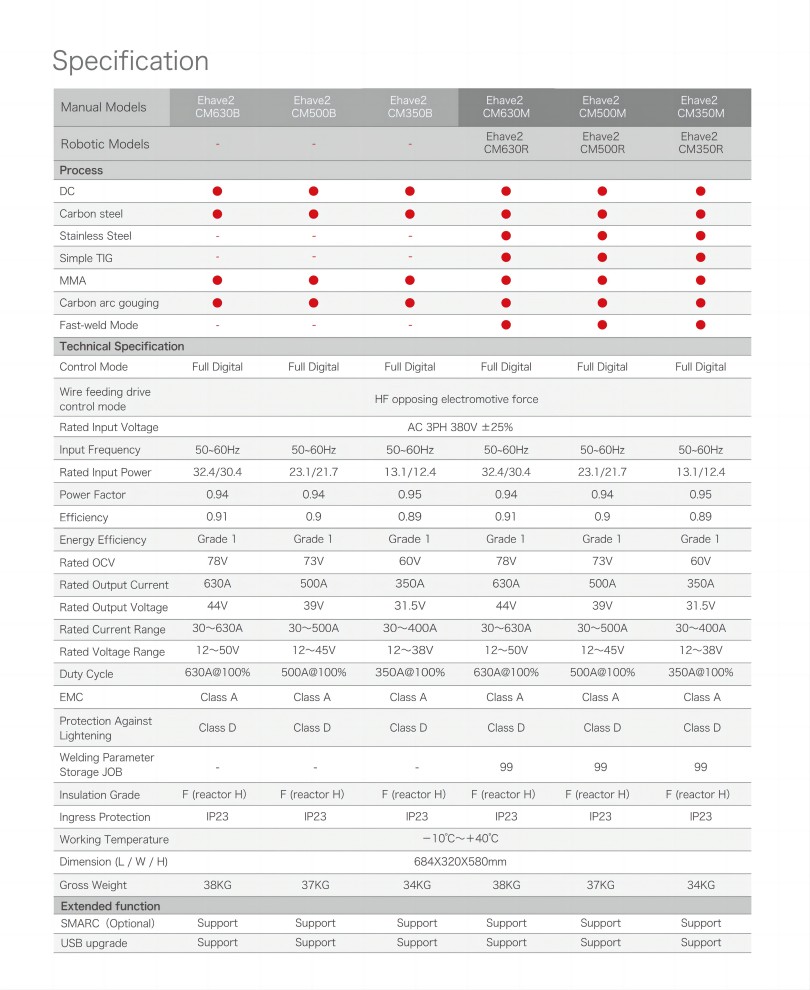

-Welding machine: :MEGMEET EHAVE 2 CM350R

• A variety of programs combined into one machine, supporting CO2/MAG/MIG/TIG/MMA/ Arc Gouging/Fast Weld and others, rich in functions to meet various application conditions;

• Support Synergic/Separate adjustment and automatic matching of key parameters to meet high-quality welding requirements;
• 0.8, 1.0, 1.2, 1.4, 1.6mm welding wire, and customized 2.0 and 2.4mm welding process(SP);
• MAG flux-cored carbon steel and MIG DC stainless steel are also weldable.

-Welding torch with highly sensitive anti – collision device, greatly extend the service life of the torch
-The machine maintenance is simple and easy to operate, and the designed service life is more than 10 years
Paying Attention To Every Detail Makes Br Robot Better
